Main Products / Setup Casers
RSA Setup Casers
Features
A fully automated converting machine forms the cases, and a grouping/loading device opens the case's upper flaps for loading. A conveyor moves product units arriving from upstream into the grouping section of the grouping/loading device. These product units are then pushed out three to a row, with pushing repeated three times (for 3x3 packs) or two times (for 3x2 packs) to form a group. The group is then inserted into the waiting case. The case moves into a fully automated sealing machine, which automatically folds the inner and outer flaps and then applies tape while the case is in transport. The finished case then exits the system.

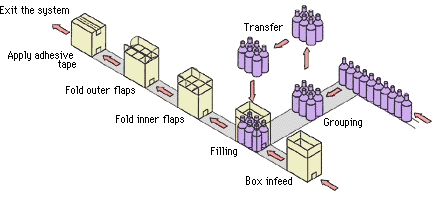

Operation Flow
Specifications
| Capacity |
50 cases/minute |
| Case sizes |
L |
W |
H |
| Min. |
275 |
189 |
290 |
| Max. |
275 |
275 |
290 |
| Sealing |
Top adhesive tape |
| Air supply |
0.5 Mpa, 400 NL/min. |
| Power |
3-phase 200V 50/60Hz 2kW |
| Size change |
Adjustment by handle |
Video
|
|
