Main Products / Wraparound Casers
Wraparound Casers

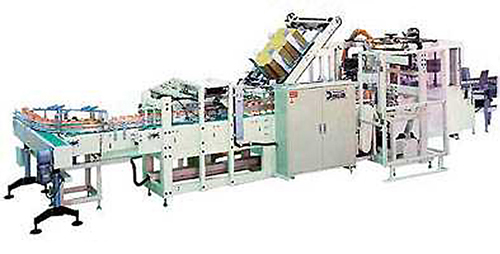

The "SP-2000" wraparound caser provides high-speed can packing. Its original paper feeding and tucking mechanisms enable production runs of 200 cases per minute, offering excellent productivity.

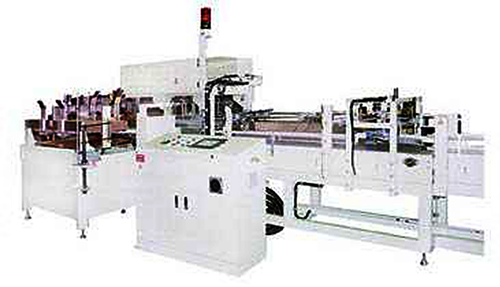

The "SP-10" handles the entire process, from grouping to casing, in a single, straight-through run.
Use of Z-shaped partitions (in place of conventional U shape) results in better compression strength and reduced packaging cost.
Use of Rengo's original sorting and grouping equipment enables stable product intake.

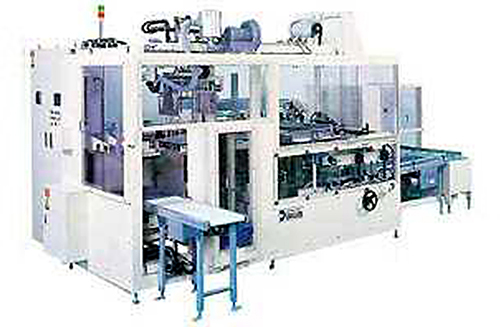

This machine receives product units from upstream, arranges these units into groups of 4 (or 6 or 8) x 5, and loads each group into a corrugated sheet that is already waiting in position within.
Use of Rengo's original sorting and grouping equipment enables stable product intake.
Wraparound Casers: System Flowchart
Conversion systems can be assembled to support many different sheets and adhesion methods.
| Sealing Method |
Hot Melt |
We use hot-melt applicators (from Nordson and others) to execute sealing in accordance with the manufacturer's specifications. |
| Types |
Compact Type |
Capacity: 10-15 cases/minute
Low-cost, space-saving system |
| Bottom Type |
Capacity: 10-15 cases/minute |
| Straight Type |
Capacity: 10-30 cases/minute |
| High-speed |
Capacity: 50 cases/minute
under development |
| Ultra-high-speed |
Capacity: 200 cases/minute
World's fastest wraparound caser |
| Optional Device |
Optional Device
A sheet feeder can be attached as an option. |
| Operational Adjustment |
Fixed
(No Adjustment) |
Dedicated system, for a specific product.
Since the system is dedicated to a single product type, no adjustment is required. Consequently, cost-performance is very favorable. |
| Adjustment by Handle |
Can be handle-adjusted to support various products. We offer the maximum adjustment range available for each setup. |
| Preset Adjustments |
The system adjusts automatically to preset values when the operator inputs a product name. |
| Specifications |
RENGO Standard Specifications |
Packaging is produced using our standard designated components. |
| Special Specifications |
Packaging is produced to meet the customer's requested specifications. |
| Accessories |
Bar-code readers, ink-jet printers, and various other mountable devices. |
| Grouping Method |
Buckets |
We can implement various designs to meet specific product requirements. |
| Sorting |
We can implement various designs to meet specific product requirements. |
| Stacking |
We can implement various designs to meet specific product requirements. |
| Pusher |
We can implement various designs to meet specific product requirements. |
| Suction |
We can implement various designs to meet specific product requirements. |
|
|
