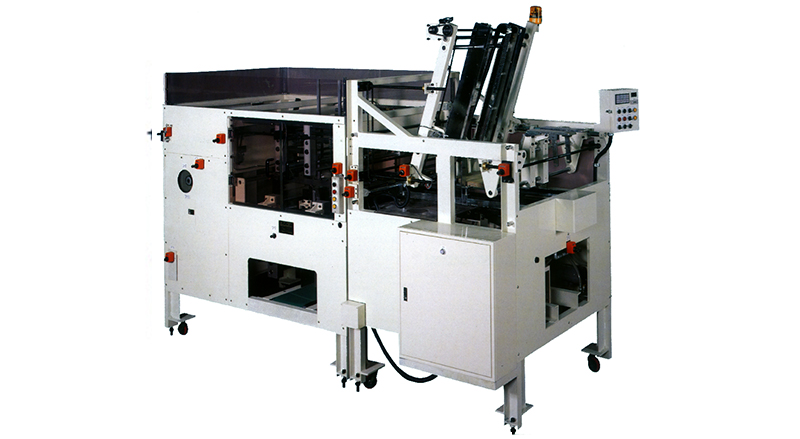

ABM Tray Converters


ABM Tray Converters

Features

The ABM series creates corrugated four-walled open trays (corrugated box bases) that are ideal for gifts and other such uses. The walls are two-ply. All sections are fully mechanical, resulting in very smooth operation. Numerous variations are available to support different size-change methods and capacities. Please ask for details.

Typical Applications
Gift box, candies, seafood, produce, cans



Case Type

Illustration

Illustration



Specifications

Model ABM-93 ABM-90 ABM-84 ABM-Jr
Capacity 20-50 cases/min 20-50 cases/min 20-50 cases/min 15
cases/min
Case
Dimensions
(mm)
A 200-595 200-595 200-595 200-580
B 145-420 145-420 145-420 160-420
C 50-115 50-115 50`115 50`115
Machine
Dimensions
(mm)
L 3,465 3,420 3,015 1,265
W 1,710 1,760 1,250 1,190
H 3,070 2,125 2,140 1,700
Machine weight 2,500kg 2,500kg 1,900kg 550kg
Power use 2.2kW 3.0kW 2.06kW 0.4kW
Sheet feed Auto Auto Auto Manual
Size change Replacea
ble dies
None None Wooden die Wooden die
Adjustment method Handle
(with indicator)
Automatic Handle
adjustment
Handle
adjustment


Video

Download

Click to download detailed product information sheet(in PDF format).
pdfABM-84
pdfABM-93
pdfABM-Jr
