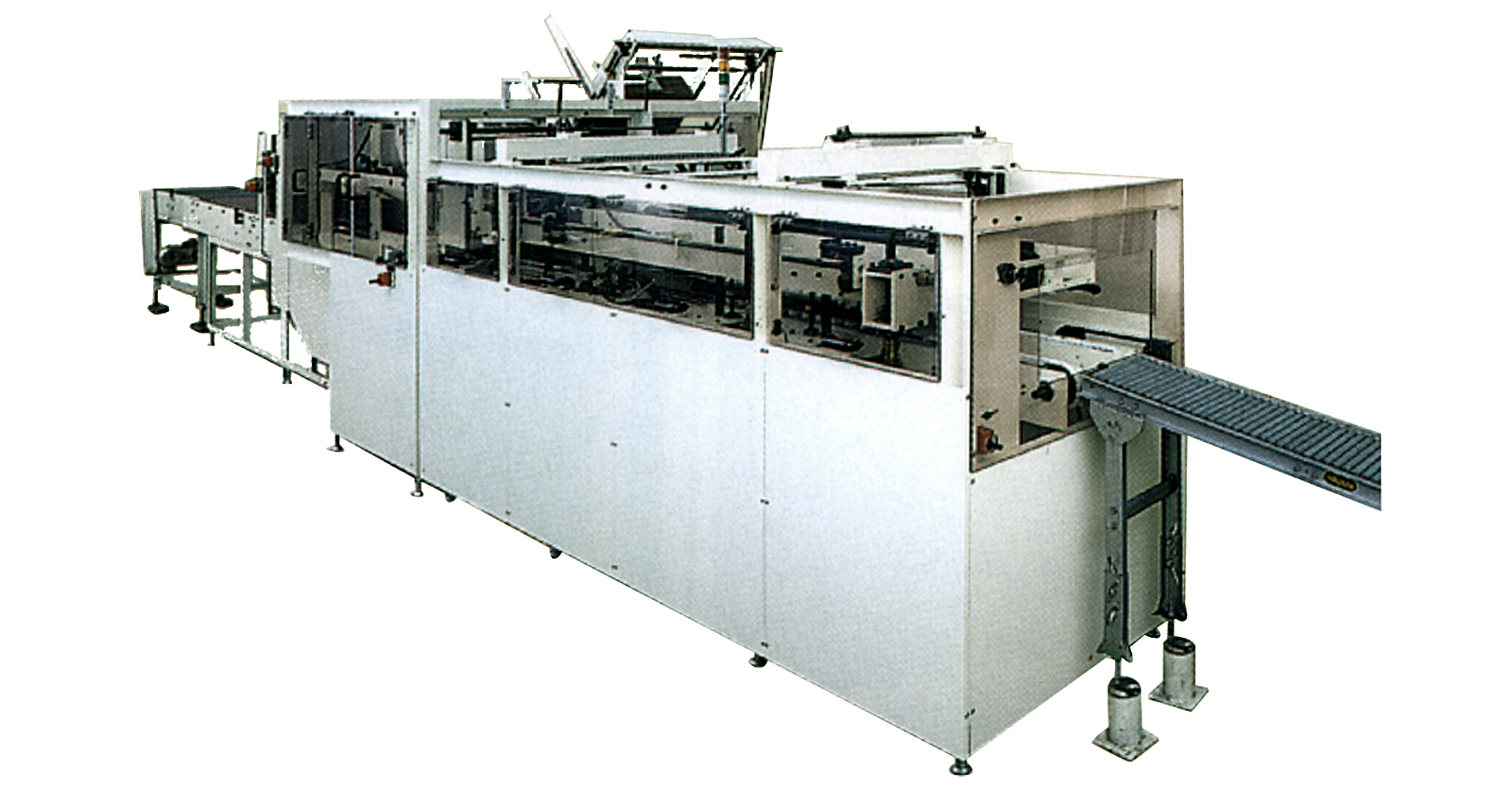

SP-10 High-Speed Wraparound Caser
(for cans, PET bottles, and glass bottles)


SP-10 High-Speed Wraparound Caser (for cans, PET bottles, and glass bottles)

Features

The "SP-10" handles the entire process, from grouping to casing, in a single, straight-through run. Since there is no need to set up multiple flows, operation is very stable and the time required for size change is significantly reduced. This caser is suitable for packing of glass bottles, plastic bottles, and cans.
Typical Applications:Glass bottles, plastic bottles, cans

Operation Flow

(1) Mechanical fingers separate out specified number of units.
(2) Guide action aligns product rows, and feeds the product into the waiting corrugated sheet.
(3) Corrugated sheet is pulled down from feed hopper.
(4) The sheet is fed into the insertion section.
(5) The top and sides are folded into place. (Body glue is applied.)
(6) The inner flaps are folded into place. (Side glue is applied.)
(7) The outer flaps are folded into place, and pressure is applied by rollers.
Illustration

Specifications

Capacity Max. 35 cases/minute
Case sizes L W H
Min. 300 200 100
Max. 450 345 250
Sealing Hot-melt adhesion
Air supply 250 NL/min., 5.0 Mpa
Power 3-phase 200V 50/60Hz 10Kw
Size change Adjustment by handle
